Finite Element Analysis

Analysis is an inverse problem solving process in engineering. The system and its parameters are known and response of the system is to be predicted against desired input. Mechanical components are analyzed by means of prototyping to check its validity under actual operating conditions. Finite element analysis is prototyping technique to better understand how design will perform under certain operating conditions.

What is FEA?

Finite Element Analysis is a

  • Mathematical representation of a physical system comprising a part/assembly (model), material properties, and applicable boundary conditions (collectively referred to as pre-processing)
  • The solution of this mathematical representation (solving), and
  • The study of results of the solution (post-processing)

Today's advanced FEA computer codes can incorporate modeling, analysis and subsequent optimization for making better products. Moreover, the product development cycle is shortened with reduction in development cost as experimental route is avoided.

Who can get benefit of FE Analysis?

Traditionally any organization involved in product design and development activity is the main user of FEA. Earlier this use was limited to automotive, aerospace and power sector giants as they are having in house R & D facility. However, small and medium scale industries are also exploring the potential of FEA. Proper simulation in FEA can save several trial and error efforts that too in short time and in cost effective manner. People involved in following activities are the potential users of FEA.

  • Product development activity in which conducting test to check its feasibility is not possible due to cost and time constraints e.g. Fatigue aspects
  • Failure analysis and subsequent modifications to get better design
  • Design optimization of geometric configuration, material and processes

Our competence in FEA

R & D center at Mechwell Industries ltd. Nasik is having full fledged capability and infrastructure for Computational mechanics viz. CFD and FEA. At present we are using commercial FEA package ANSYS-11 (Workbench and Classic environments) along with expert team of post graduate mechanical engineers. With 26 years of experience in power sector we are looking forward to extend our service domain to automotive and aerospace industries.

Continual learning and excellence in transforming ideas into reality is our way to solve engineering problems. We are well prepared to handle the challenges in today's industrial scenario. Some of the areas for which we can provide the design and analysis solutions are as follows:

Static Analysis

  • FEA Linear/Non Linear Analysis
  • FEA Static structural Stress Analysis.
  • Durability & Fatigue Analysis

Dynamic Analysis

  • Modal Analysis
  • Random Vibration Analysis
  • Spectrum Stress Analysis
  • Fracture Analysis
  • Multi body dynamics

Lifting Pin Pulley

  • What We Simulate :
  • Structural Analysis Of Pulley
  • Safety Factor Calculations for infinite fatique life
Read More..

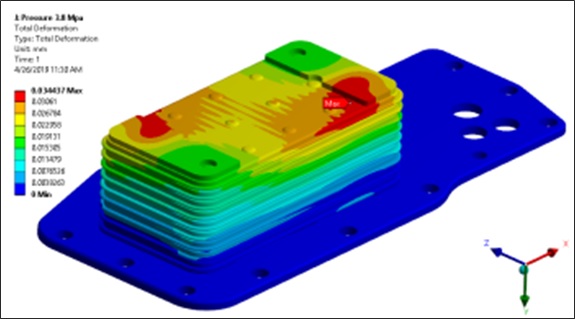

Oil Cooler

  • What We Simulate :>
  • Modal Simulation
  • 10G Loading (x,y,z directions)
  • Pressure Loading
  • Steady State Thermal
Read More..

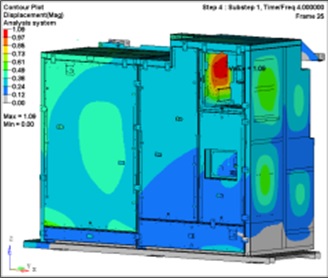

Locomotive Cabinets

  • What We Simulate :>
  • Modal Simulation
  • Structural Strength
  • G Loading
Read More..
